C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver

China C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver supplier
C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver supplier C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver supplier C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver supplier

Large Image :  C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number: C-50-2-1 coaxial cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100/200m/305/1000FT or according to client’s request
Delivery Time: Within 2 weeks
Payment Terms: T/T, L/C,DP
Supply Ability: 10,000KM per month
Contact Now
Detailed Product Description

C-50-2-1 Coaxial Cable , Bare Copper Braided 50 Ohm Cable Used In Transmitter And Receiver

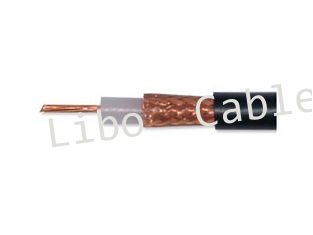

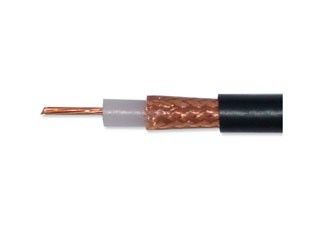

C-50-2-1 coaxial cable, solid stranded copper wire as inner conductor, Dielectric core is insulating grade virgin polyethylene, bare copper wire for braiding material, and PVC jacket.



Applications



C-50-2-1 coaxial cable is used in transmitter and receiver installations in radio communications as well as in the entire field of commercial radio-frequency technology and electronics.



Specifications:



construction















Testing item

Unit

Standard

Inner conductor

material

-

solid copper(7*0.16mm)

diameter

mm

0.48

Dielectric

material

-

solid PE

diameter

mm

2.0mm

 shield, braid

material

-

bare copper wire

Electrical properties

coverage

%

90%

jacket

PVC

mm

2.8+/-0.1mm

Nominal velocity of propagation

%

66%

Capacitance

pF/M

100

Characteristic impedance

Ω

50 +/-2

SRL

dB

18

Attenuation

20℃(max)



1MHZ

dB/100m

2.40

10MHZ

7.50

100MHZ

23.8

200MHZ

34.0

1000MHZ

77.0

2000MHZ

111



Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
