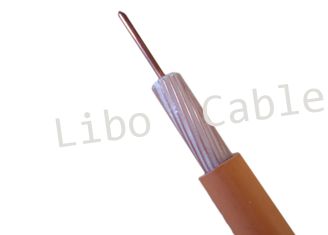

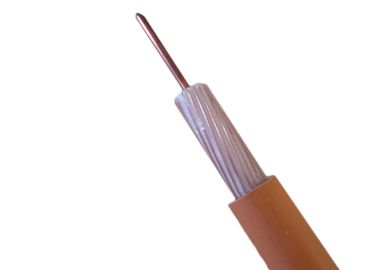

Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System

I'm Online Chat Now
China Shaoxing Libo Electric Co., Ltd certification
China Shaoxing Libo Electric Co., Ltd certification
I like Libo's hig efficiency and stable quality, I am expecting Libo to offer more high quality RG6 in future.

—— Mr. Martin

Libo's trunk cable is of very high quality and it is at the very competitive price, my team will place larger order in the following months.

—— Mr. Aaron

It is the 7th year that I buy seamless aluminum tube trunk cables from Libo, my company will order more cables like RG braiding cable from Libo.

—— Mr. Marthew Whitman

I will choos Libo cable to be my vendor for my big tender in January of 2015, because quality of Libo's RG6 and RG11 are proved to be very good.

—— Mr. Rober Karline

We place regular orders for coaxial cables from Libo since 3 years ago, we trust our cooperation will be more in year of 2015.

—— Mr. Paul Smith

High quality and reasonable price, this is the reason that I choose Libo to be one of my vendors.

—— Mr. Steven Silva

We work with Libo because they have very stable product quality which is so important to all buyers.

—— Ms.Angela Santos

Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System

Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System
Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System

Large Image :  Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, MSHA
Model Number: MSHA leaky feeder cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price

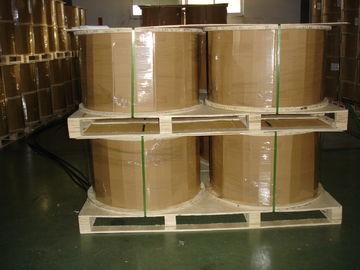

Packaging Details: 350m/500m/1000m or according to client’s request
Delivery Time: 5 days
Payment Terms: T/T, L/C,DP
Supply Ability: 1000 KM per month
Detailed Product Description
High Light:

halogen free cable

,

cable leaky feeder

Mines Communication Leaky Feeder Cables , SLYWV-75-10 Leaky Feeder Cable for Wireless System



Quick Details

  • High quality oxygen free copper 99.99%
  • Virgin grade PE insulation
  • Flame retardant jacket
  • Low smoke free halogen jacket is availiable
  • MSHA certificate

Product Description:



The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available.

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.



Applications:



  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection



Specification:



Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

<4.5 ohm/km

DC resistance outer conductor

<4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

>10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade



Competitive Advantage:



  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
