75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines

I'm Online Chat Now
China Shaoxing Libo Electric Co., Ltd certification
China Shaoxing Libo Electric Co., Ltd certification
I like Libo's hig efficiency and stable quality, I am expecting Libo to offer more high quality RG6 in future.

—— Mr. Martin

Libo's trunk cable is of very high quality and it is at the very competitive price, my team will place larger order in the following months.

—— Mr. Aaron

It is the 7th year that I buy seamless aluminum tube trunk cables from Libo, my company will order more cables like RG braiding cable from Libo.

—— Mr. Marthew Whitman

I will choos Libo cable to be my vendor for my big tender in January of 2015, because quality of Libo's RG6 and RG11 are proved to be very good.

—— Mr. Rober Karline

We place regular orders for coaxial cables from Libo since 3 years ago, we trust our cooperation will be more in year of 2015.

—— Mr. Paul Smith

High quality and reasonable price, this is the reason that I choose Libo to be one of my vendors.

—— Mr. Steven Silva

We work with Libo because they have very stable product quality which is so important to all buyers.

—— Ms.Angela Santos

75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines

75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines
75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines 75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines 75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines 75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines

Large Image :  75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines Canada Mines Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, MSHA
Model Number: Leaky feeder cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 350m/500m/1000m or according to client’s request
Delivery Time: 5 days
Payment Terms: T/T, L/C,DP
Supply Ability: 1000 KM per month
Detailed Product Description
High Light:

leaky feeder cable

,

cable leaky feeder

 75 ohm Leaky Feeder Cable , SLYWV-75-10 MSHA Certified Leaky Cable For America Mines  Canada Mines



Quick Details:



  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable

Product description:

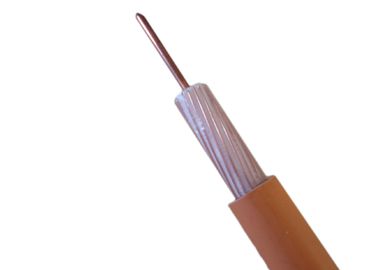

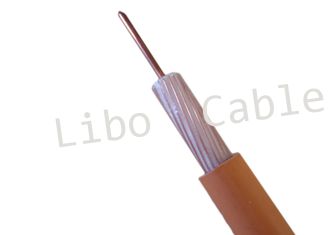

This leaky feeder cable is of 75 ohm with oxygen free copper as inner conductor. Evenly spaced copper wire for outer conductor, the common color of outer jacket is yellow, but blue or orange color is also available.


Applications:

  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection



Specifications:


Center conductor

Oxygen free copper
Inner conductor diameter:2.31±0.05mm(0.091±0.002 inches)

Dielectric


Gas expanded polyethylene
Diameter over dielectric: 9.53±0.2mm(0.375±0.008 inches)

Outer conductor


1. Annealed oxygen free copper wire
16 strand x 0.6±0.05mm(0.024±0.002 inches)

2. Tape for tightening copper wires

Flame retardant Jacket


Inner jacket: black PE
13.0±0.5mm(0.512±0.02 inches)

Outer jacket: PVC or low smoke zero halogen
15.0±0.5mm(0.59±0.01968 inches)

Electrical properties


Impedance : 75±3 ohms
Attenuation @160 MHZ--4.2dB/100m
DC resistance inner conductor<4.5 ohm/km
DC resistance outer conductor<4.1 ohm/km
Capacitance-- 54 pF/m
Insulation resistance>10.4m ohm/km

Mechanical properties


MIN. bend radius--150mm
Operating temperature---40 to +70 centigrade

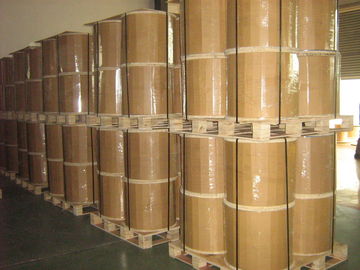

Packing

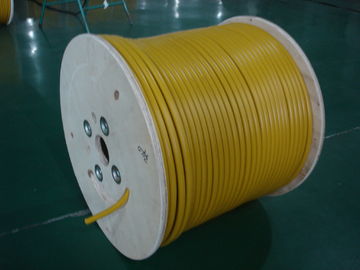

Cable length/roll—350m or 500m±2% as per customer’s preference
Reel size (Flange* Hub* Traverse): 56cm x 28cm x 50cm or 69cm x31cm x 50cm



 Competitive Advantage:



  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
