50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor
-
-
Large Image :
50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductor
|
Product Details:
| Place of Origin: |
China |
| Brand Name: |
Libo |
| Certification: |
CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati |
| Model Number: |
RG58 coaxial cable |
Payment & Shipping Terms:
| Minimum Order Quantity: |
0.1KM |
| Price: |
Call or e-mail to get the latest price |
| Packaging Details: |
100/200m/305/1000FT or according to client’s request |
| Delivery Time: |
Within 2 weeks |
| Payment Terms: |
T/T, L/C |
| Supply Ability: |
10,000KM per month |
|
Detailed Product Description
| Inner Conductor: |
Stranded Copper Wire |
Shielding: |
Tinned Copper Wire Braiding |
| Jacket: |
Black Rohs PVC |
Length: |
100m Or 1000FT Per Reel |
50 Ohm Cable RG58 Tinned Copper Wire Braiding Coaxial Cable Copper Inner Conductorctor
Applications
- CCTV installations, Control Video-cameras and Video-security in public and private places, for supervisory of buildings, enclosed spaces and open outdoor areas and any other Video frequency application of an RG58 C/U MIL standards.
- Suitable for Broadcast application and other equipment in: Laboratories, Supermarkets, Airports, Hospitals, Big Areas, Sport facilities etc.
- Transmission of data signals in applications such as antenna feed cables or Ethernet backbones
- Industrial/instrumentation and control, computer cable, medical, RF
Description:
RG58 coaxial cable, solid copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, tinned copper wire for braiding material, and PVC jacket.
Specifications:
| Physical dimensions (Nominal) |
| Component |
Material |
mm |
| Center Conductor Diameter |
Bare solid copper |
0.81mm±0.02 |
| Diameter Over Dielectric |
Solid PE |
2.95±0.15 |
| Outer Condutor |
Bare copper wire,0.12mm,92% |
NONE |
| Diameter Over Jacket |
PVC |
4.9mm±0.15 |
| |
| Electrical Specifications |
| Impedance, Ohms |
50±3 |
| Velcoity of Propagation %C,Nominal |
83% |
| Spark test |
3000VAC |
| Return loss |
20.8 |
| Operating temp |
|
' -25 to 70 |
|

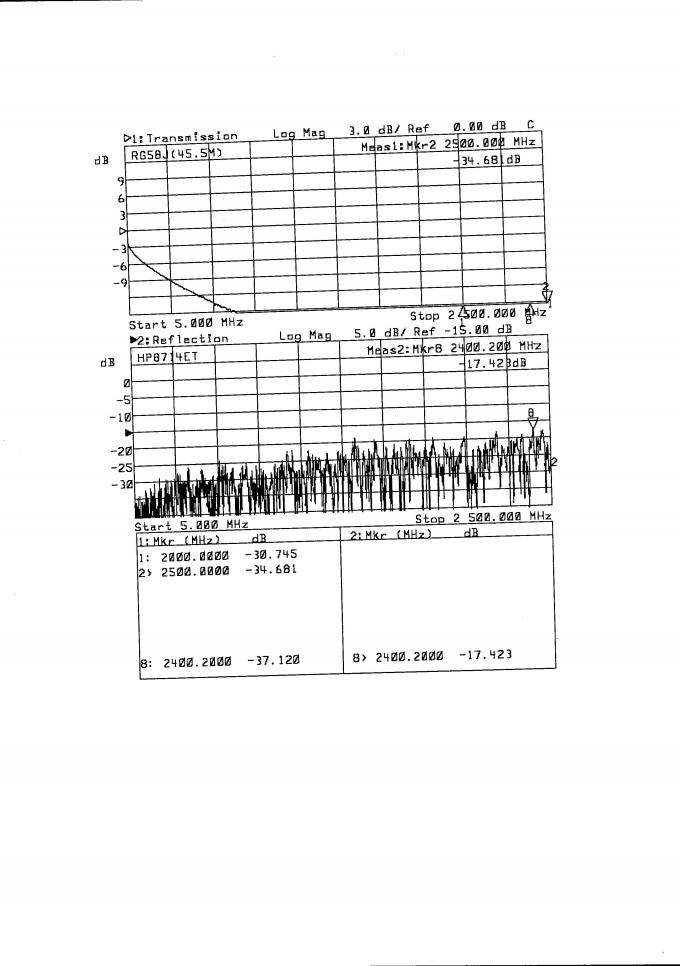

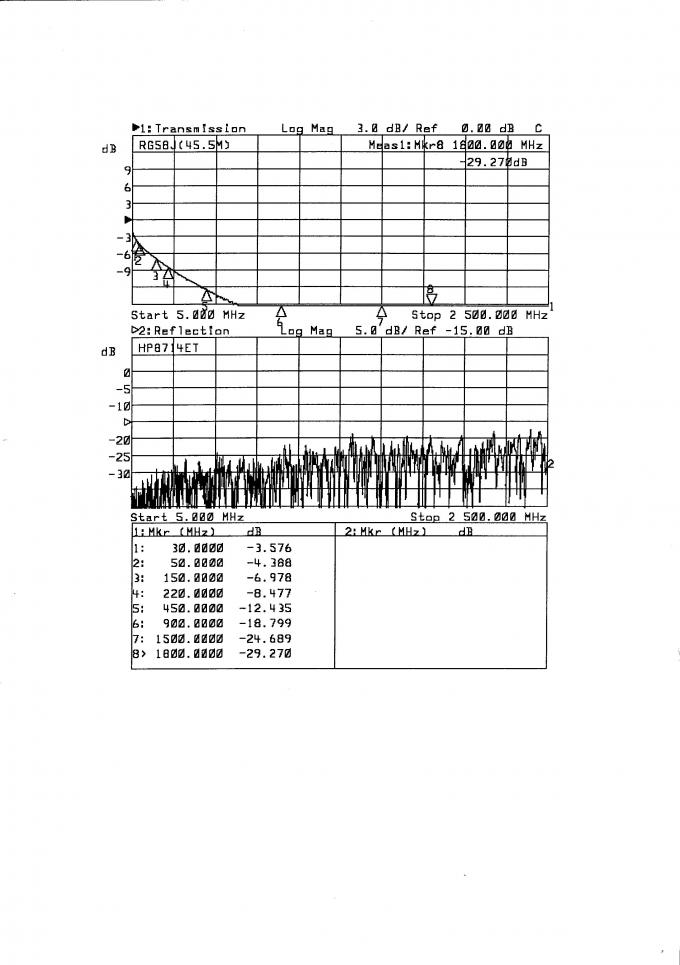

| Attenuation, Maximum @68℉(20℃) |
|
|
| Frequency (MHZ) |
Maximum |
Maximum |
| (dB/100ft) |
(dB/100m) |
| 30MHZ |
1.90 |
6.30 |
| 50MHZ |
2.47 |
8.10 |
| 150MHZ |
4.30 |
14.10 |
| 220MHZ |
5.21 |
17.10 |
| 450MHZ |
7.50 |
24.60 |
| 900MHZ |
10.70 |
35.00 |
| 1500MHZ |
13.90 |
45.60 |
| 1800MHZ |
15.27 |
50.10 |
| 2000MHZ |
16.15 |
53.00 |
| 2500MHZ |
18.20 |
59.50 |
| Attenuation is nominal value, Maximum attenuation value shall be 105% of |
|
| the nominal attenuation value |
|
|
|
|
|
59.50
|
Competitive Advantage:
- RG58 has lower signal loss than smaller diameter cable such as RG 174
- Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
- Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
- Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
-
