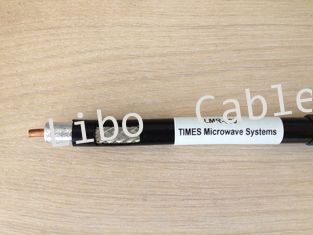

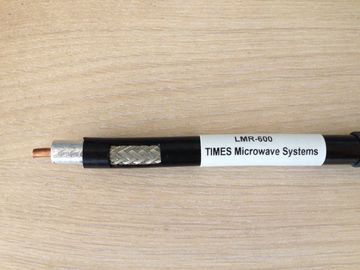

50 ohm Coaxial Cable 600 Flexible Low Loss Communication Coaxial Cable for WLL GPS

50 ohm Coaxial Cable  600 Flexible Low Loss Communication Coaxial Cable for WLL  GPS
50 ohm Coaxial Cable  600 Flexible Low Loss Communication Coaxial Cable for WLL  GPS 50 ohm Coaxial Cable  600 Flexible Low Loss Communication Coaxial Cable for WLL  GPS 50 ohm Coaxial Cable  600 Flexible Low Loss Communication Coaxial Cable for WLL  GPS

Large Image :  50 ohm Coaxial Cable 600 Flexible Low Loss Communication Coaxial Cable for WLL GPS Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number: Libo 600 coaxial cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100/200m/305/1000FT or according to client’s request
Delivery Time: Within 2 weeks
Payment Terms: T/T, L/C
Supply Ability: 12,000KM per month
Detailed Product Description
High Light:

LMR coaxial cable

,

50 ohm coaxial cable

50 ohm Coaxial Cable 600 Flexible Low Loss Communication Coaxial Cable for WLL GPS



Description:



600 flexible low loss coaxial cable uses solid bare copper or high quality CCA as inner conductor. Dielectric core is insulating grade virgin polyethlene, tinned CCA braiding wire and aluminum PET tape as shield, Out side jacket is high quality PE or PVC.





Structure specification

description

material

inches

mm

Inner conductor

Solid BC or CCA

0.176

4.47

dielectric

Foam PE

0.455

11.56

Outer conductor

Aluminum tape

0.461

11.71

Overall braid

Tinned CU or tinned CCA or as per request

0.49

12.45

Jacket

PVC or PE

0.59

14.99





Mechanical performance

Performance property

units

US

metric

Bend radius

In.(mm)

6

152.4

Tensile strength

Lb(kg)

350

158.9



Environmental specifications

Performance property

0F

oC

Installation temperature range

-40/+185

-40/+85

Storage temperature range

-94/+185

-70/+85

Operating temperature range

-40/+185

-40/+85



Electrical performance

Performance property

units

US

(metric)

Velocity of propagation

%

87



impedance

ohms

50



capacitance

pF/ft(pF/m)

23.4

76.6

Inner conductor resistance

Ohms/1000ft(/km)

0.53

1.7

Outer conductor resistance

Ohms/1000ft(/km)

1.2

3.9

Voltage withstand

Volts DC

          4000



Frequency (MHz)

30

50

150

220

450

900

 1500

1800

2000

Attenuation dB/100ft

0.4

0.5

1

1.2

1.7

2.5

3.3

3.7

3.9

Attenuation dB/100m

1.4

1.8

3.2

3.9

5.6

8.2

10.9

12.1

12.8



Applications:

LMR cable is a good solution for…

  1. Replacement of RG-8/9913 air-dielectric type cable.
  2. Earth station antenna jumper cable.
  3. Jumpers for equipment room and antenna connection.
  4. Military data links.
  5. VLF, AM and FM radio broadcast systems.
  6. Application for WLL, GPS, WiMAX, SCADA, Mobile Antennas.



Competitive Advantage:

  1. Outstanding flexibility.
  2. Has the lowest loss of any flexible cable and comparable loss to semi rigid hard-line cables.
  3. Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  4. Libo cable has a stable workforce and engineering team, we offer stable quality product with short lead-time.
  5. Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
