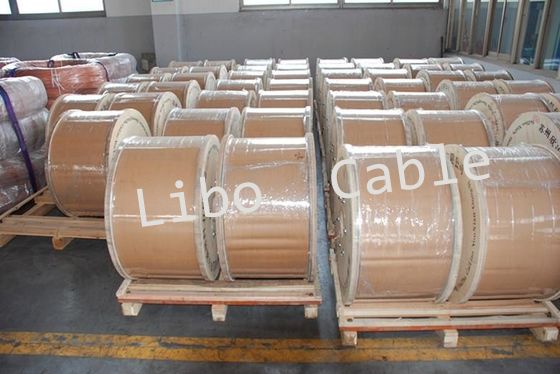

High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products

High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products
High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products

Large Image :  High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH
Model Number: copper clad steel

Payment & Shipping Terms:

Minimum Order Quantity: 300KG
Price: Call or e-mail to get the latest price
Packaging Details: 300KG per drum
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 50,000 tons per year
Detailed Product Description
High Light:

flat conductor cable

,

coxial cable

High Strength 30% CCS CATV Inner Conductor , Copper Clad Steel Wire For Electronic Products



Specifications:

Copper clad steel is produced by electroplating method and or coating method. 15%CCS, 18% CCS, 21%CCS, 25%CCS,30% high strength CCS, 35% high strength CCS, and 40% CCS are available for different options. All of product meet with standard of ASTM B 869-96(copper clad steel wire for CATV inner conductor), and ASTM B 452-93(copper clad steel wire for electronic products).



Technical data of 30% conductivity CCS

Diameter(mm)

Thickness of copper(mm)

resistance

Standard

Diameter

tolerance

Thickness

Ω/km≤

1.67

±0.015

0.072x2

27

1.628

±0.015

0.070 x2

28.5

1.45

±0.015

0.062 x2

36.2

1.29

±0.0127

0.055 x2

45.5

1.151

±0.0127

0.049 x2

57.2

1.024

±0.01

0.044 x2

72.5

0.813

±0.0076

0.035 x2

115

0.724

±0.0076

0.031 x2

145

0.643

±0.0076

0.027 x2

185

0.574

±0.0076

0.024 x2

232

0.511

±0.0076

0.022 x2

292

0.50

±0.0076

0.017 x2

473



temper

Tensile strength(MPa)

Elongation ( %)

Hard

≥827MPa

≥1.5

soft

≥380MPa

≥8



Application

  • Inner conductor to replace high cost bare copper conductor
  • Electrical equipment
  • Electronic component



Competitive Advantage:

  • Good corrosion resistance of copper
  • High tensile strength of steel
  • Resistance against material fatigu
  • No burrs
  • Low cost
