18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV

China 18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV supplier
18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV supplier 18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV supplier 18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV supplier

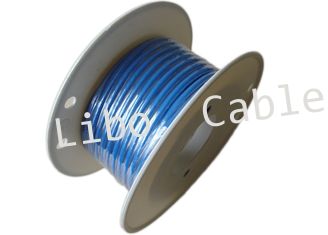

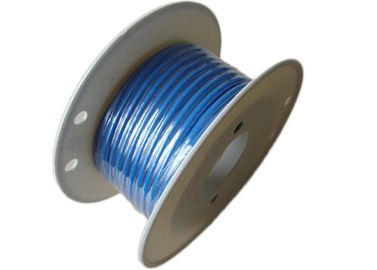

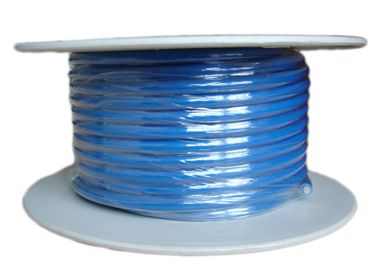

Large Image :  18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable VATC Cable WITH PVC Jacket FOR CATV, MATV

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: RG6 PVC

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100/200m/305/or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 10,000KM per month
Contact Now
Detailed Product Description

18AWG RG6 Cable, Europe standard 75 ohm Coaxial Cable WITH PVC Jacket FOR CATV, MATV



Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 60% braid, PVC jacket.



Center conductor:

18 AWG copper clad steel

Nominal diameter:1.02±0.05mm



Insulation:

Gas expanded polyethylene

Nominal diameter over dielectric: 4.57±0.10mShield:

1st foil : Al-Mylar

The first braid shield: AL-Mg alloy wire

Construction: 16/4/0.157

Coverage area(%): ≧60%

The second foil: N/A

The second braid shield: N/A

Construction: N/A

Coverage area (%): N/A



Outer jacket: PVC

Outer jacket thickness: 0.76mm

Overall nominal dimension:6.9±0.5mm

Outer jacket color: per customer’s request.

Messenger: N/A



Mechanical characteristics:

Operating temperature range: -20 oC to +75 oC

Min. bend radius (install): 8 x O.D.

Outer jacket tensile strength: ≧13.8MPa

Outer jacket elongation: ≧100%



Electrical characteristics:

Nominal mutual capacitance @ 1 KHz: 53.1 pF/m

Nominal velocity of propagation: 82%

Max. conductor DC resistance: 102Ω/km(@20 oC

SRL(5-1000MHz): 20dB

Characteristic impedance: 75±3.0Ω



Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

5MHZ

1.90

55MHZ

5.25

83MHZ

6.40

187MHZ

9.35

211MHZ

10.00

250MHZ

10.82

300MHZ

11.64

350MHZ

12.63

400MHZ

13.61

450MHZ

14.43

500MHZ

15.29

550MHZ

16.08

600MHZ

16.73

750MHZ

18.54

865MHZ

20.01

1000MHZ

21.49



Applications:

RG6 cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.



Competitive Advantage:

  • RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG6 cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, the RG6 cable is with short lead-time and stable high quality.
  • Libo cable is equipped with a Provincial-level Research and Development Center.
