UL Standard Quad-Shield RG7 Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System

China UL Standard Quad-Shield RG7 Coaxial Cable  75 Ohm RG Coaxial Cable For CATV CCTV System supplier
UL Standard Quad-Shield RG7 Coaxial Cable  75 Ohm RG Coaxial Cable For CATV CCTV System supplier UL Standard Quad-Shield RG7 Coaxial Cable  75 Ohm RG Coaxial Cable For CATV CCTV System supplier UL Standard Quad-Shield RG7 Coaxial Cable  75 Ohm RG Coaxial Cable For CATV CCTV System supplier

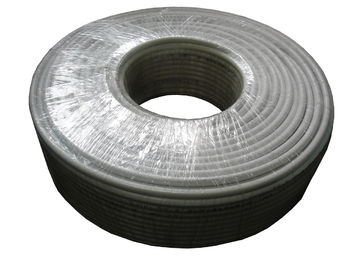

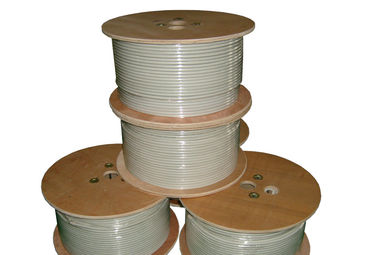

Large Image :  UL Standard Quad-Shield RG7 Coaxial Cable 75 Ohm RG Coaxial Cable For CATV CCTV System

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number: RG7 coaxial cable with PE jacket

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100m/200m/305m/1000ft or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C,DP
Supply Ability: 12,000KM per month
Contact Now
Detailed Product Description

UL Standard Quad-Shield RG7 Coaxial Cable  75 Ohm RG7 Coaxial Cable For CATV  CCTV System



PE Jacket:

Nominal diameter over jacket: 8.3mm

Messenger version: 1.8mm zinc coated (galvanized) carbon steel wire.



Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 0.12 x 96 braid, PVC jacket.



Center conductor:

nominal diameter: 1.3mm±0.01mm



Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 6.0mm



Shield:

1st shield: bonded aluminum tape.

2nd shield: 0.12 aluminum braid wire, 6ends x16 carry.

Maximum ovality: 0.013" (0.33)



Electrical properties:

Impedance : 75±3 ohms

SRL: 5-3000MHZ≧20dB, 300-1000MHZ≧18dB

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

5

1.54

55

4.10

211

7.74

250

8.40

300

9.25

330

9.72

350

10.01

400

10.73

450

11.35

500

12.04

550

12.63

600

13.28

750

14.99

1000

17.45



Applications:

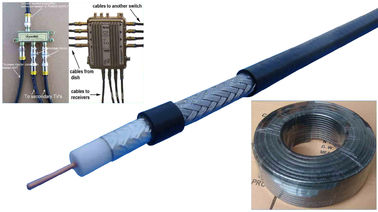

RG7 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.


Competitive Advantage:

  • RG7 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG7 cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL RG7 cable is about 7 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
