7/8 Inches Feeder Cable Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication system

China 7/8 Inches Feeder Cable  Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication system supplier

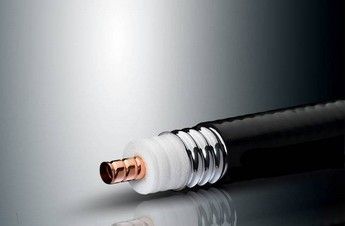

Large Image :  7/8 Inches Feeder Cable Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication system

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH
Model Number: RF cable 7/8’’

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 350m/500m/or according to client’s request
Delivery Time: Within 15 days
Payment Terms: T/T, L/C,DP
Supply Ability: 2000 KM per month
Detailed Product Description

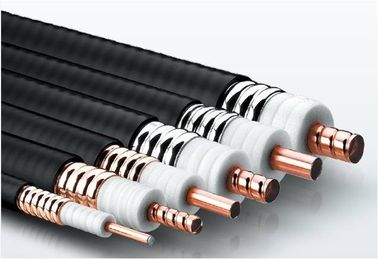

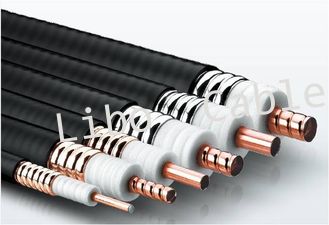

7/8 Inches Feeder Cable  Helix Copper Tube RF Coaxial Cable For Wireless Mobile Communication System

Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is corrugated aluminum tape. PE for outer jacket.

Applications:

  • metro stations
  • wireless In-building solutions
  • tunnels
  • Wireless mobile communication
  • Microwave telecommunication
  • Military use


Specification:




construction



Testing item

Unit

Standard

Inner conductor

material

-

helix wrinkle copper tube

diameter

mm

9.00

Outer conductor

material

-

corrugated aluminum tape welded

diameter

mm

               25.10

jacket

PE or halogan free

mm

27.70

mechanical performance

single bending radius

mm

140

repeated bending radius

mm

270

electrical performance

inner conductor resistance

Ω/km

≤1.65

outer conductor resistance

≤1. 65

Capacitance

pF/M

76

Characteristic impedance

Ω

50+/-1

Velocity

%

88

Attenuation
20℃(max)

150MHZ

dB/100m

1.85

280MHZ

2.55

450 MHZ

3.25

800 MHZ

4.37

900 MHZ

4.65

1500 MHZ

6.08

1800 MHZ

6.69

2000 MHZ

7.07

2400 MHZ

7.79

3000 MHZ

8.78

VSWR

0.01GHz-3GHz

-

1.20

820MHZ-960MHz

1.15

1.7GHz-1.9GHz

2.1GHz-2.2GHz


Competitive Advantage:


  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.
