SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network

China SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network supplier
SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network supplier SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network supplier SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network supplier

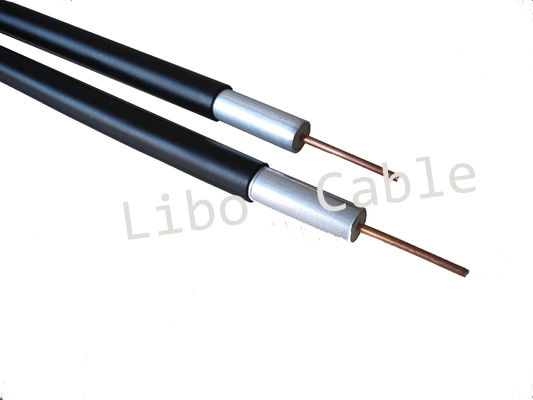

Large Image :  SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: PⅢ 500JCASS

Payment & Shipping Terms:

Minimum Order Quantity: 0.5KM
Price: Call or e-mail to get the latest price
Packaging Details: 500m/762m 2500ft/1000m or according to client’s request
Delivery Time: Within 15 days
Payment Terms: T/T, L/C
Supply Ability: 1500KM per month
Contact Now
Detailed Product Description
Inner Conductor: Copper Clad Aluminum Shielding: Solid Aluminum Tube
Jacket: Black PE Jacket Length: 2400ft Or 2500ft

SCTE Standard CATV Trunk cable 500 Aluminum Tube Trunk Cable Asphalt Floodant Compound



Quick Details:


•Aluminum Tube Trunk Cable500 JCASS

•Seamless aluminum tube as outer conductor
•Patented technology
•Over 20 years of experience
•High quality PE outer jacket
•Asphalt or flooding compound is available
•One of key OEM /ODM trunk cable suppliers in China
•ISO certfied factory
•Conflict Minerals Declaration


Product description:

This is the seamless aluminum tube trunk cable is with outstanding minimum bend radius, product is manufactuered and tested in the factory according ANSI/SCTE standard.
The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material. Flooded compound is used to prevent corrosion of the trunk cable.



Applications:

The P3 500 JCASS trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.



Physical dimensions

component

inches

mm

Inner conductor

0.109

2.77

diameter over dielectric

0.450

11.43

diameter over outer conductor

0.500

12.70

Outer conductor thickness

0.024

0.61

Diameter over flooded jacket

0.570

14.48

Jacket wall thickness

0.030

0.76



Packing:



Buyer's labels and cartons OEM/ODM desgin service is available.


Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 300lbs /136kgf


Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Maximum D.C resistance @68OF:

Inner conductor: 1.35ohms/1000ft (4.43ohms/km)
Outer conductor: 0.37ohms/1000ft (1.21ohms/km)
Loop: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.16

0.52

55MHZ

0.54

1.77

83MHZ

0.66

2.17

211MHZ

1.09

3.58

250MHZ

1.20

3.94

300MHZ

1.31

4.30

350MHZ

1.43

4.69

400MHZ

1.53

5.02

450MHZ

1.63

5.35

500MHZ

1.73

5.67

550MHZ

1.82

5.97

600MHZ

1.91

6.27

750MHZ

2.16

7.09

865MHZ

2.34

7.68

1000MHZ

2.52

8.27


Applications:

The P3 500 JCASS trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Competitive Advantage:

  • The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
  • To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable is available; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable developed the world’s first conforming seamless aluminum tube trunk cable.
  • Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
  • Libo cable is equipped with a Provincial-level Research and Development Center.SCTE Standard CATV Cable Trunk for HFC Duplex Transmission Network
