Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS

China Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS supplier
Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS supplier Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS supplier Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS supplier

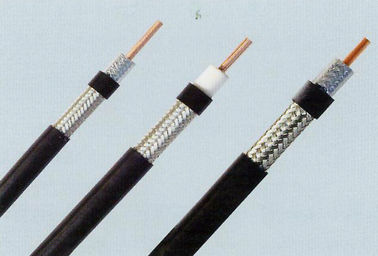

Large Image :  Small Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: RG500 cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100m/200m/305m/1000ft or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 6,000KM per month
Contact Now
Detailed Product Description

Small  Braiding RG Type Coxial Cable, CATV Coaxial Cable, RG500 Coxial Cable With PE Jacket For DBS



Applications:

  1. CATV-community antenna television
  2.  CCTV-closed-circuit television
  3.  DBS-direct broadcasting satellite



Product description:

Inner conductor is oxygen free bare  copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% bare copper wire braid; PE for outer sheath.



Center conductor:

Oxygen free bare copper

Nominal diameter: 2.77mm



Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 11.43mm



Shield:

1st shield: BAPA

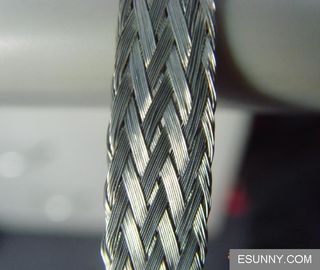

2nd shield: bare copper wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.



PE Jacket:

Nominal diameter over jacket: 14.43mm



Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 86% nominal

V.S.W.R: 1.25

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

10

0.90

50

1.90

150

1.86

250

3.39

350

4.38

450

5.20

750

5.82

864

7.29

1000

8.40




Competitive Advantage:

  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
