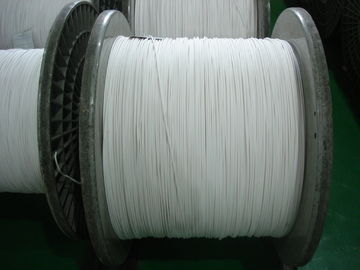

Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum

Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum
Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum

Large Image :  Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number: RG6 tri-shield 0.15x112 90% coverage

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100/200m/305/1000FT or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C, DP
Supply Ability: 12,000KM per month
Detailed Product Description
High Light:

RG6 coax cable

,

RG6 coaxial cables

Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum



Quick Details:


• RG6 Coaxial Cable
•18AWG CCS
• Polyethylene Insulation
• Bonded aluminum PET foil
• 60% braiding coverage
• Tri- shield
• PVC jacket


Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the 2nd shield is 90% coverage braiding, and the 3rd shield is normal aluminum foil. The Jacket is PVC or PE for outdoor applications.



Applications:

RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.



Center conductor:

18AWG copper clad steel

Nominal diameter: 0.0403”(1.02mm)±0.01(0.0004)



Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.18”(4.57mm)



Shield:

1st shield: bonded aluminum tape.

2nd shield: 0.15 aluminum braid wire, 7ends x16 carry. 90% coverage

Maximum ovality: 0.013" (0.33)

3rd shield: normal aluminum foil.

Screening shield: ≧85dB



PVC Jacket:

Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)



Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.





Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100 meters(MAX.)

5

2.66

55

5.25

211

10.10

250

11.25

270

11.48

300

12.14

330

12.76

350

13.15

400

14.11

450

15.03

500

15.93

550

16.70

600

17.77

750

19.69

870

21.33

1000

22.97






Competitive Advantage:

  • RG6 tri-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG6 tri-shield cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, lead-time of 20’FCL is 5 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
  • Semi Finished Braiding RG Cable CCS Inner Condutor 75 Ohm 4900 Meters Per Drum 0
