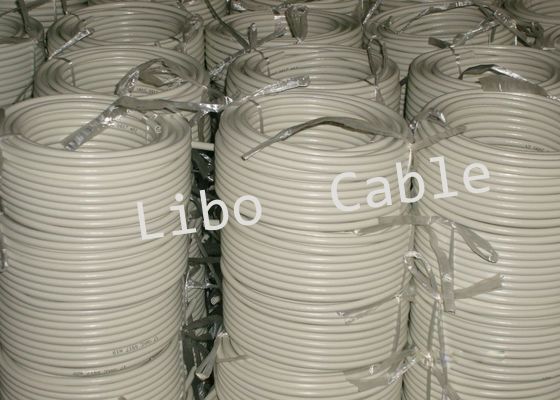

Tri-Shield 21VATC Coaxial Cable, 75 ohm Video Coaxial Cable for Europe Standard CATV
Applications:
21VATC cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.
Description & Specifications:
construction
| Testing item | Unit | Standard | ||
Inner conductor | mm | 1.02mm bare copper | |||
Dielectric | 4.6mm FPE | ||||
1st shield, tape | Material | - | BAPA | ||
Thickness | mm | 0.07 | |||
2nd shield, braid | Material | - | Tinned copper wire | ||
coverage |
| 35%-90% | |||
3rd shield, tape | Material | - | Normal aluminum tape | ||
Thickness | mm | 0.035 | |||
jacket | PVC or PE | mm | 6.8±0.05 | ||
Nominal velocity of propagation | % | 83 | |||
SRL | dB | 20 | |||
Capacitance | nF/KM | 50±3 Nominal | |||
Characteristic impedance(10MZ) | Ω | 75±3 | |||
Attenuation@ 68OF(20oC): | 50MHZ | dB/100m | 5.10 | ||
100MHZ | 7.80 | ||||
200MHZ | 9.50 | ||||
400MHZ | 14.00 | ||||
800MHZ | 20.60 | ||||
950MHZ | 22.70 | ||||
1000MHZ | 23.40 |
Competitive Advantage:
