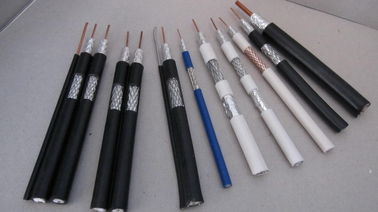

VATC Coaxial Cable, 21VATC 75 ohm CATV Coaxial Cable with 0.8 Bare Copper Conductor
Applications:
24VATC cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.
Description & Specifications
construction
| Testing item | Unit | Standard | ||
Inner conductor | mm | 0.8 bare copper | |||
Dielectric | 3.70 FPE | ||||
1st shield, Tape | Material | - | BAPA | ||
Thickness | mm | 0.07 | |||
2nd shield, Braid | Material | - | Tinned copper wire | ||
coverage |
| 35%-90% | |||
3rd shield | Material | - | Normal aluminum tape | ||
Thickness | mm | 0.035 | |||
jacket | PVC or PE | mm | 5.85±0.05 | ||
Thickness | mm | 0.80 | |||
Nominal velocity of propagation | % | 85 | |||
SRL | dB | 20 | |||
Capacitance | nF/KM | 50±3 Nominal | |||
Characteristic impedance(10MZ) | Ω | 75±3 | |||
| 50MHZ |
| 6.00 | ||
100MHZ | 8.40 | ||||
200MHZ | 11.90 | ||||
400MHZ | 16.90 | ||||
800MHZ | 24.00 | ||||
950MHZ | 26.30 | ||||
1000MHZ | 27.00 | ||||
Competitive Advantage:
