Outdoor 75ohm CATV RG59 Coaxial Cable Connector PVC Anti UV Jacket

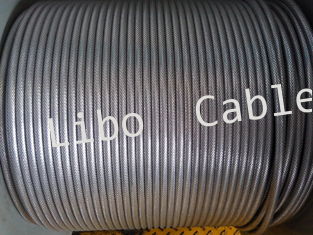

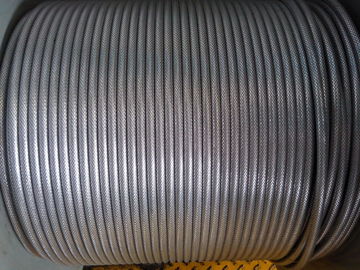

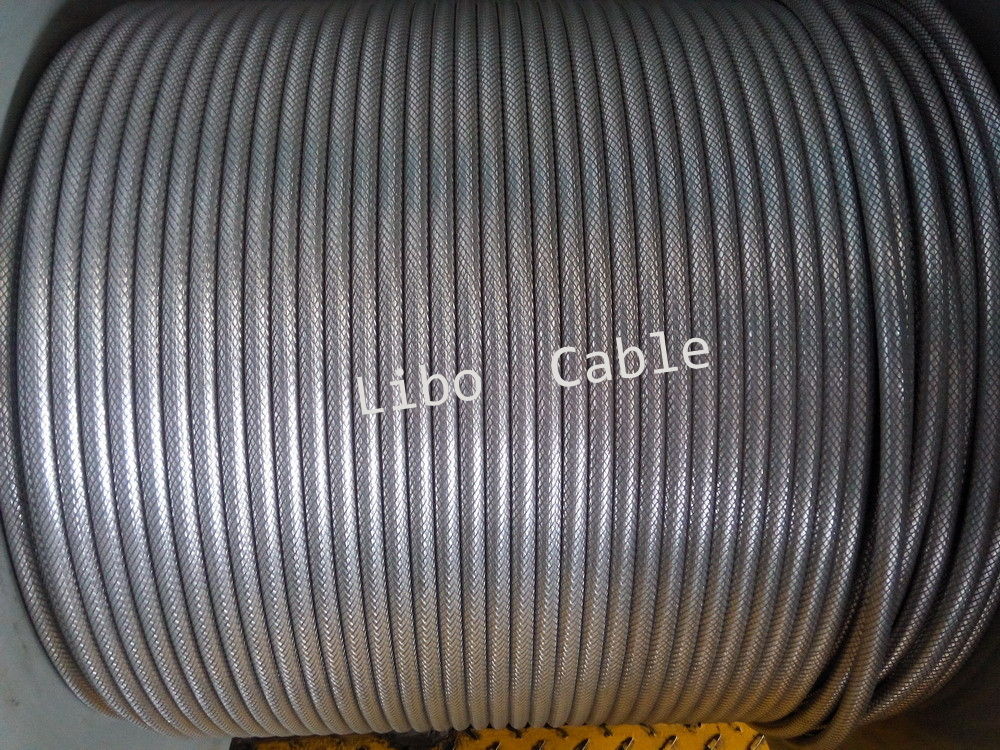

Large Image : Outdoor 75ohm CATV RG59 Coaxial Cable Connector PVC Anti UV Jacket Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number:	RG59 PE jacket

Payment & Shipping Terms:

Minimum Order Quantity:	0.1KM
Price:	Call or e-mail to get the latest price
Packaging Details:	100/200m/305/1000FT or according to client’s request
Delivery Time:	Within 10 days
Payment Terms:	T/T, L/C
Supply Ability:	12,000KM per month

Contact Now

Detailed Product Description

High Light:

rg59 siamese cable

RG coaxial cables

Coaxial Cable RG59 Drop Cable 75 ohm CATV Coaxial Cable PVC anti UV jacket

Center conductor:

20AWG copper clad steel

Nominal diameter: 0.32inches (0.81mm)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.144inches (3.66mm)

Shield:

1^st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.151inches (3.84mm)

2st shield: 34 AWG (0.12mm) aluminum braid wire, 65% coverage.

PE Jacket:

Nominal diameter over jacket: 0.24inches (6.10mm)

Nominal jacket thickness: 0.032inches (0.81mm)

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 65% braid, PE jacket.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ	dB/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.86	2.82
55MHZ	2.05	6.73
83MHZ	2.45	8.04
187MHZ	3.60	11.81
211MHZ	3.80	12.47
250MHZ	4.10	13.45
300MHZ	4.45	14.60
350MHZ	4.80	15.75
400MHZ	5.10	16.73
450MHZ	5.40	17.72
500MHZ	5.70	18.70
550MHZ	5.95	19.52
600MHZ	6.20	20.34
750MHZ	6.97	22.87
865MHZ	7.52	24.67
1000MHZ	8.12	26.64

Applications:

RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Competitive Advantage:

Outstanding anti-interference effectiveness and excellent transmission reliabilities.
low cost and easy to install.
Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, the F5940BV cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.
