700 CATV Trunk Cables with Messenger Aluminium Tube Trunk Cable with SCTE standard

Large Image : 700 CATV Trunk Cables with Messenger Aluminium Tube Trunk Cable with SCTE standard Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number:	PⅢ 700 JCAM

Payment & Shipping Terms:

Minimum Order Quantity:	0.5KM
Price:	Call or e-mail to get the latest price
Packaging Details:	500m/762m 2500ft/1000m or according to client’s request
Delivery Time:	Within 15 days
Payment Terms:	T/T, L/C
Supply Ability:	1500KM per month

Contact Now

Detailed Product Description

High Light:

trunk release cable

seamless trunk cable

700 CATV Trunk Cables with Messenger Aluminium Tube Trunk Cable with SCTE standard

Quick Details:

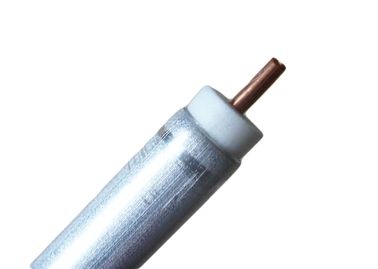

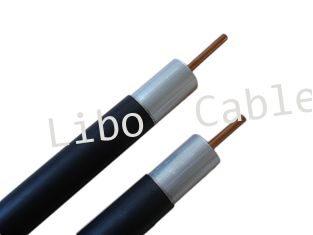

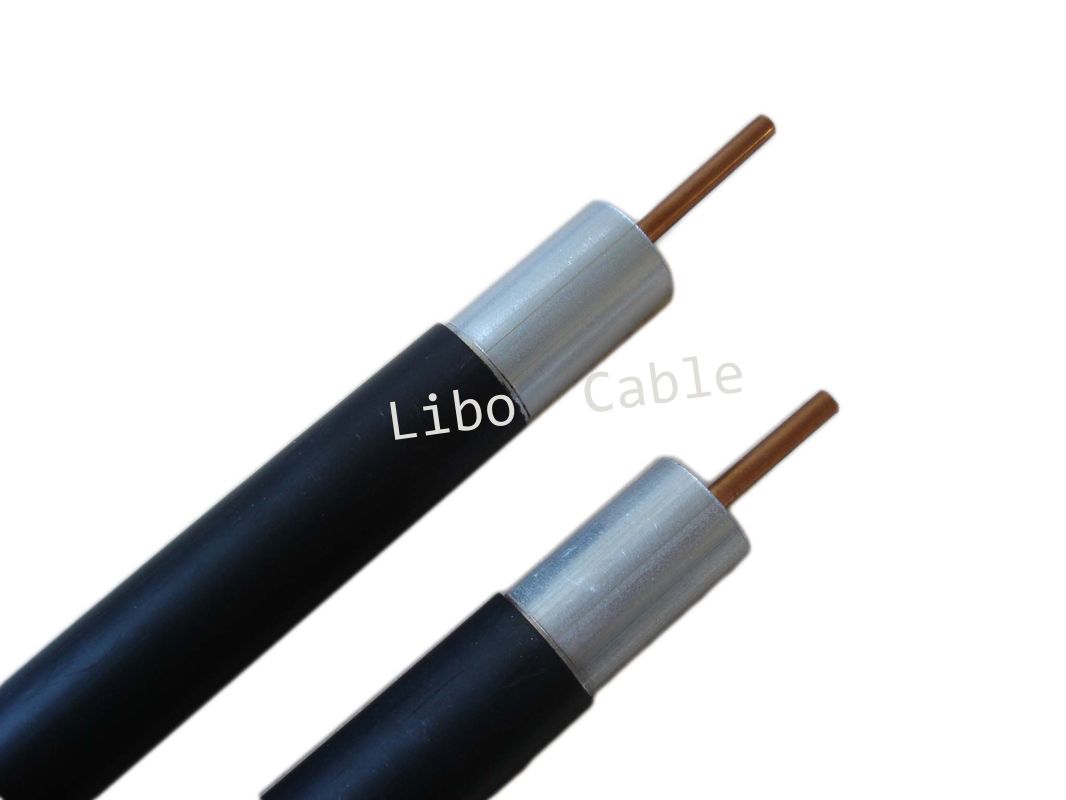

• Aluminum Tube Trunk Cable PIII 700 JCAM

• Seamless aluminum tube as outer conductor
• Patented technology
• High quality PE outer jacket
• Asphalt or flooding compound is available

Product description:

Medium density PE is for outer Jacket.Inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene; outer conductor is seamless aluminum tube.

Applications:

P3 700JCAM trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Physical dimensions
Component	inches	mm
Inner conductor	0.163	4.14
Diameter over dielectric	0.653	16.59
Diameter over aluminum tube	0.703	17.86
Diameter over jacket	0.7650	19.43

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:

Minimum bending radius: 8.0 inches/20.3cm

Maximum pulling tension: 501lbs /227kgf

Messenger:

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ	dB/100 meters(MAX.)
5MHZ	0.36
55MHZ	1.18
211MHZ	2.40
250MHZ	2.66
300MHZ	2.95
350MHZ	3.22
400MHZ	3.45
500MHZ	3.90
600MHZ	4.30
750MHZ	4.89
865MHZ	5.32
1000MHZ	5.74

Competitive Advantage:

The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable is available; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable developed the world’s first conforming seamless aluminum tube trunk cable.

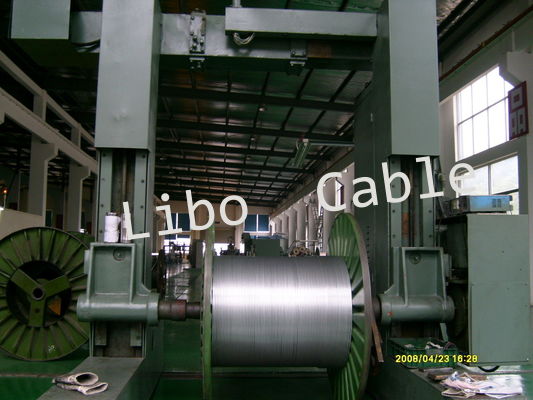

Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Production and testing procedures strictly follow requirements of ISO9000, and ISO14000.
