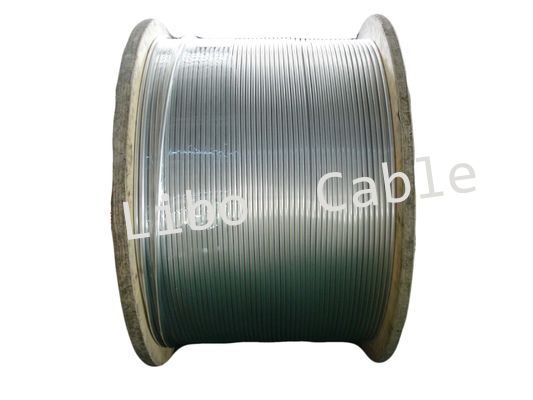

Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger

Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger
Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger

Large Image :  Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: PⅢ 412JCAM

Payment & Shipping Terms:

Minimum Order Quantity: 0.5KM
Price: Call or e-mail to get the latest price
Packaging Details: 500m/762m 2500ft/1000m or according to client’s request
Delivery Time: Within 15 days
Payment Terms: T/T, L/C
Supply Ability: 1500KM per month
Detailed Product Description
Inner Conductor: Copper Clad Aluminum Shielding: Solid Aluminum Tube
Jacket: PE Black Jacket Length: 2400FT Or 2500FT
High Light:

trunk release cable

,

outdoor trunk cable

CATV 412 with Zinc Coated Messenger 2.77 mm Distribution Cable  Aluminum Tube Trunk Cable With Messenger

Quick Details:


  • Aluminum Tube Trunk Cable 412JCAM
  • Seamless aluminum tube as outer conductor
  • Patented technology
  • Over 20 years of experience
  • High quality PE outer jacket
  • Asphalt or flooding compound is available


Product description:
The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material.


Physical dimensions

component

inches

mm

Inner conductor

0.089

2.26

Diameter over dielectric

0.362

9.19

Diameter over outer conductor

0.411

10.46

Outer conductor thickness

0.024

0.61

Diameter over jacket

0.475

12.07

Jacket wall thickness

0.0315

0.80

messenger

0.109

2.77



Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 150lbs /68kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.20

0.65

55MHZ

0.69

2.26

83MHZ

0.86

2.82

211MHZ

1.41

4.62

250MHZ

1.54

5.05

300MHZ

1.70

5.57

350MHZ

1.87

6.13

400MHZ

1.97

6.46

450MHZ

2.11

6.92

500MHZ

2.24

7.34

550MHZ

2.35

7.71

600MHZ

2.47

8.10

750MHZ

2.78

9.12

865MHZ

3.01

9.87

1000MHZ

3.27

10.73


Applications:

P3 412JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.

Competitive Advantage:

  • The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
  • To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable is available; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center.
  • Aluminum Tube Trunk Cable 412JCAM with Zinc Coated Messenger 0
