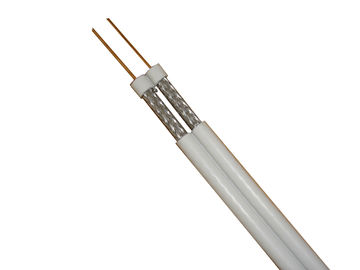

Anti-Interference 75 ohm RG6 Dual Coaxial Cable RG6 Coaxial Cable CATV Cable with UL Standard

Anti-Interference 75 ohm RG6 Dual Coaxial Cable  RG6 Coaxial Cable CATV Cable with UL Standard
Anti-Interference 75 ohm RG6 Dual Coaxial Cable  RG6 Coaxial Cable CATV Cable with UL Standard Anti-Interference 75 ohm RG6 Dual Coaxial Cable  RG6 Coaxial Cable CATV Cable with UL Standard Anti-Interference 75 ohm RG6 Dual Coaxial Cable  RG6 Coaxial Cable CATV Cable with UL Standard

Large Image :  Anti-Interference 75 ohm RG6 Dual Coaxial Cable RG6 Coaxial Cable CATV Cable with UL Standard Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number: RG6 dual coaxial cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 3000/4800m/5000/or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C,DP
Supply Ability: 12,000KM per month
Detailed Product Description
High Light:

dual RG6 cable

,

RG6 coax cable

Anti-Interference 75 ohm RG6 Dual Coaxial Cable RG6 Coaxial Cable CATV Cable with UL Standard



Quick Details:


• RG6 Coaxial Cable
• 18AWG CCS
• Polyethylene Insulation
• Bonded aluminum PET foil
• 60% braiding coverage
• Standard shield
• PVC jacket

Applications:
RG6 cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.

Description & Specifications:



construction








Testing item

Unit

Standard

Inner conductor

mm

1.02±0.01

Dielectric

4.57±0.08

1st shield, Tape

Material

-

Bonded aluminum foil

Thickness

mm

0.042±0.008

Width

mm

17±0.3

2nd shield, Braid

Material

-

Alloy wire

Diameter

mm

0.152±0.01

Ends

EA

5

Carrier

EA

16

Pitch

mm

42

Electrical properties

Coverage

%

65%

Outer jacket

PVC or PE

mm

6.8+6.8+web

Withstanding voltage

-

AC 1000V/min

Capacitance

nF/KM

53.2 Nominal

Characteristic impedance(10MZ)

Ω

75±3

VSWR(5.75-864MHZ)



1.2dB

Attenuation
20℃(max)
10MHz(10%)
50-1000MHz(5%)

10MHZ

dB/100m

2.80

50MHZ

4.96

150MHZ

8.11

250MHZ

10.39

350MHZ

12.30

450MHZ

14.39

750MHZ

19.43

864MHZ

20.48

Physical properties

Inner conductor tensile strength

Kgf/mm2

50.0



Inner conductor elongation

%

1.0 (Min)




Competitive Advantage:

  • RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG6 cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL is about 7 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and DEM services.
