Inner Conductor: | Copper Clad Steel | Shielding: | Quad Shielding |
---|---|---|---|
Jacket: | White Color PVC | ||
High Light: | RG6 coax cable,RG6 coaxial cables |

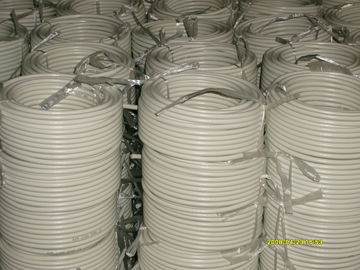

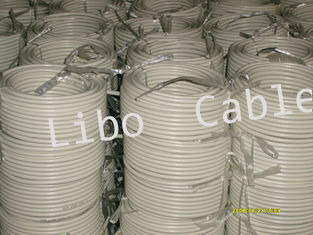

Indoor CATV Low Loss RG6 Dual Coaxial Cable To Rca , Quad Shield Coax Cable
Quick Details:
Applications:
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Product description:
21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1st shield is bonded laminated aluminum tape, the 2nd shield is 0.12x64 braid, the third shield is normal aluminum foil, an then the 4th shield is 0.12x 48 braid. The jacket is flame retardant PVC.
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.12 aluminum alloy braid wire, 4ends x16 carry.
Maximum ovality: 0.013" (0.33)
3rd shield: normal aluminum foil.
4th shield: 0.12 aluminum alloy braid wire, 4 ends x 16 carry.
Flame retardant jacket:
Nominal diameter over jacket: 7.10mm±0.2mm
Packing:
We provide buyer's label OEM/ODM design service.
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ |
dB/100 meters(MAX.) |
5 |
2.66 |
55 |
5.25 |
211 |
10.10 |
250 |
11.25 |
270 |
11.48 |
300 |
12.14 |
330 |
12.76 |
350 |
13.15 |
400 |
14.11 |
450 |
15.03 |
500 |
15.93 |
550 |
16.70 |
600 |
17.77 |
750 |
19.69 |
870 |
21.33 |
1000 |
22.97 |
