MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder

MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder
MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder

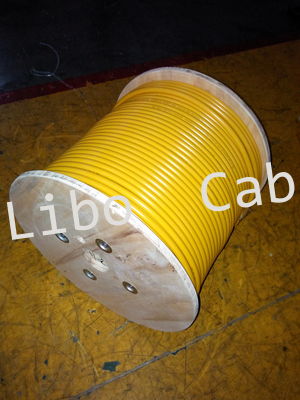

Large Image :  MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000, ISO14001,RoSH, MSHA
Model Number: SLYWV-75-10 leaky feeder cable

Payment & Shipping Terms:

Minimum Order Quantity: 0.1km
Price: Call or e-mail to get the latest price
Packaging Details: 350m/500m/1000m or according to client’s request
Delivery Time: 5 days
Payment Terms: T/T, L/C,DP
Supply Ability: 1000 KM per month
Detailed Product Description
High Light:

cable leaky feeder

,

halogen free cable



MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder





Quick Details:



  • MSHA Certificate
  • Solid Oxygen Free Copper Inner Conductor
  • Bare Copper Wire Braiding
  • Low Smoke Halogen Free Jacket or Fire Retardant Jacket
  • VHF Leaky Feeder Cable
  • 75 Ohm Leaky Feeder Cable



Description:



MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.





Applications:



  • Mines underground communication system
  • metro stations
  • tunnels
  • ships
  • In-building wireless systems.
  • perimeter detection



Specification:





NO. Items Technical Requirements
1 Inner conductor CU 2.31±0.03mm
2 Dielectric FPE 9.50±0.20mm
3 Outer conductor CU 16*0.60mm
4 Inner jacket PE 13.0±0.30mm
5 Outer jacket PVC 15.5±0.50mm
6 impedance 75±3Ω
7 Frequency 5-500 MHz
8 DC resistance inner conductor ≤4.1Ω/km
9 DC resistance outer conductor ≤3.9Ω/km
10 Capacitance Pf/m 51±2
11 Insulation resistance >10.4Ω/km
12 MIN. bend radius 150mm
13 Coupling loss(50%), dB 65±10
14 Operating temperature -40 to +70 centigrade

15



Attenuation@20℃

≤dB/100m

85 MHz ≤3.4dB
150 MHz ≤4.2dB
160 MHz ≤4.8dB
450 MHz ≤6.1dB



Competitive Advantage:



  • Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
  • Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
  • Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.

MSHA 75 Ohm Leaky Feeder Cable VHF Low Smoke Halogen RNG 500 Leaky Feeder 0
