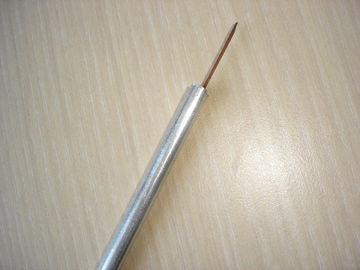

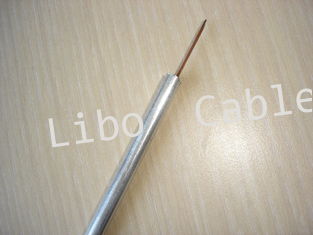

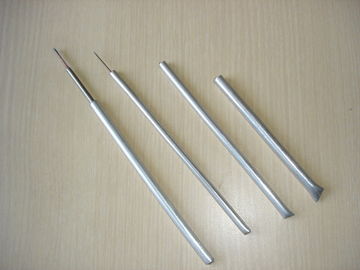

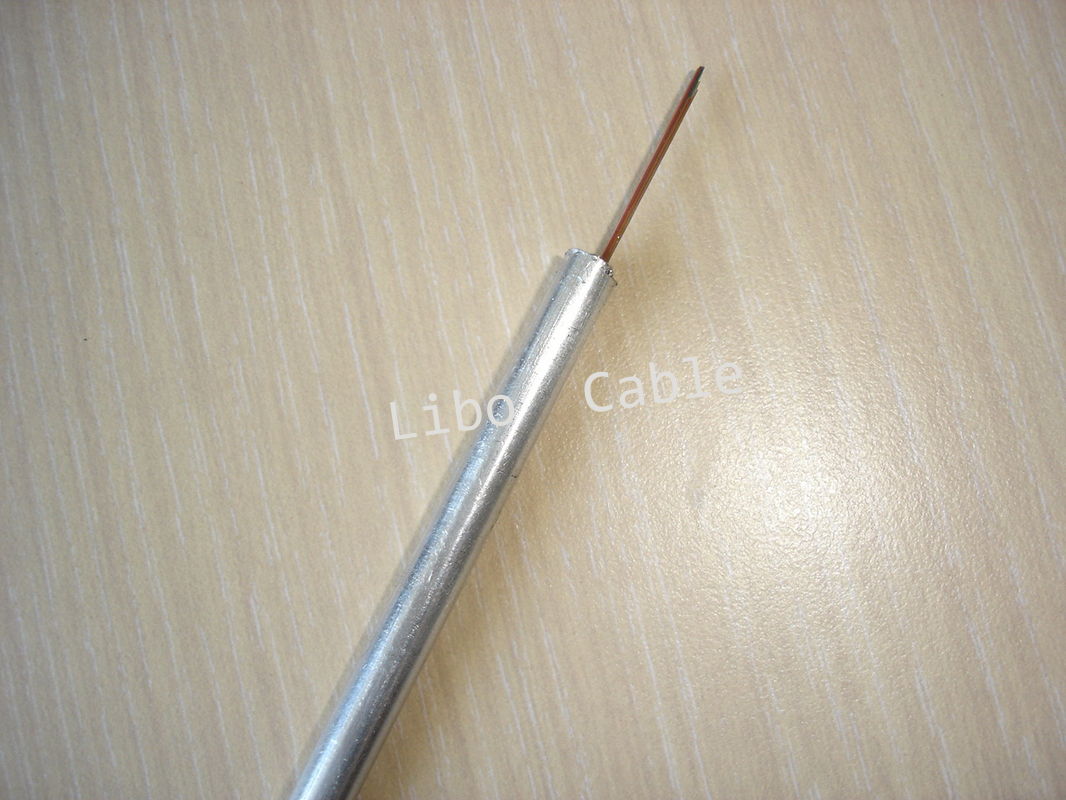

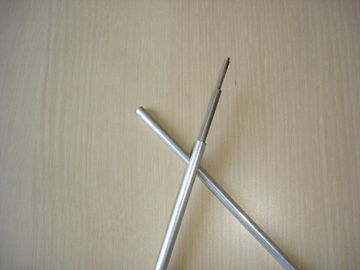

Video 500KV OPGW Optical Ground Wire With seamless aluminum tube
Description:
OPGW cable is the short for optical ground wire; it is the optical fiber composite overhead ground wire.
OPGW cable has one or more optical fibers inside, and contains stainless steel tube, or seamless aluminum tube.
Applications
Specifications:
Description | Fiber cores | Description | Fiber cores | Diameter | |||
structure | Optical fiber | G.652 | 24 | G.652 | 0 | ||
Center | SUS | 1 | Fiber cores | 24 | Tube Diameter | 3.60mm | |
1st layer | 27% AS wire | 6 | AA wire | 0 | Wire Diameter | 3.60mm | |
Specification | As per Standard of IEC, IEEE, DL/T 832-2003, and GB/T 7424.4-2003. | ||||||
Strand: Anti- Corrosion paste is filled between center conductor and each layers. | |||||||
the twisted direction of the outer lyaer is rightwards (Z-stranding) | |||||||
Cable diameter: | 10.80mm | ||||||
Cable weight: | 391kg/KM | ||||||
Cross section area: | 61mm2 | ||||||
AS area | 61.07mm2 | ||||||
AA area | 0.00mm2 | ||||||
Nominal Tensile strength ( RTS) | 62.7kN | ||||||
E- Modulus | 140.0kN/mm2 | ||||||
Coefficency of thermal expansion | 13.4x10-6/℃ | ||||||
Max.working stress(MAT)(40% RTS) | 410.40N/mm2 | ||||||
Each day stress (EDS)(16%-25 RTS) | 164.2 | ~256.5N/mm2 | |||||
Limited special stress (70% RTS) | 718.2N/mm2 | ||||||
D.C resistance | 1.060Ω/km | ||||||
Short circuit current | (0.25s,20℃-200℃) | 10.1kA | |||||
Short circuit capacity 12t | 25.5kA2S | ||||||
Min.bending radius | Installation | 270mm | |||||
Operation | 162mm | ||||||
Raito of Draw weight | 16.4km | ||||||
Tempreature range | Installation tempreature | -10℃~+50℃ | |||||
Delivery and operation tempreature | -40℃~+80℃ |
