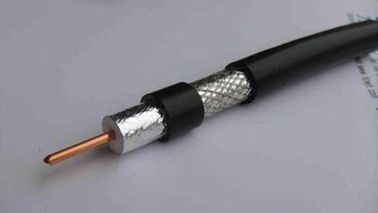

RG7 Coaxial Cable UL PVC Jacket 75 ohm Coaxial Cable For Satellite System

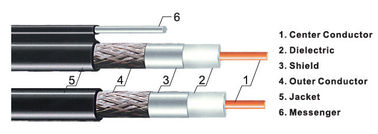

Center conductor:
nominal diameter: 1.3mm±0.01
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 6.0mm
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.12 aluminum braid wire, 6ends x16 carry.
Maximum ovality: 0.013" (0.33)
Product description:
21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 0.12 x 96 braid, UL PVC jacket.
PVC Jacket:
Nominal diameter over jacket: 8.3mm
Messenger version: 1.8mm zinc coated (galvanized) carbon steel wire.
Electrical properties:
Impedance : 75±3 ohms
SRL: 5-3000MHZ≧20dB, 300-1000MHZ≧18dB
Attenuation@ 68OF(20oC):
@Frequency MHZ |
dB/100 meters(MAX.) |
5 |
1.54 |
55 |
4.10 |
211 |
7.74 |
250 |
8.40 |
300 |
9.25 |
330 |
9.72 |
350 |
10.01 |
400 |
10.73 |
450 |
11.35 |
500 |
12.04 |
550 |
12.63 |
600 |
13.28 |
750 |
14.99 |
1000 |
17.45 |
Applications:
RG7 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
