Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon

Large Image : Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	IS09000, ISO14000,CE, SGS
Model Number:	Copper strip for PV ribbon

Payment & Shipping Terms:

Minimum Order Quantity:	0.1 ton
Price:	LME copper price + processing fee
Packaging Details:	In roll
Delivery Time:	1 week
Payment Terms:	T/T, L/C at sight
Supply Ability:	2000 tons per month

Contact Now

Detailed Product Description

High Light:

copper foil

Copper Roofing Strips

Industrial Thin Copper Strips / Copper Sheet Metal For PV Ribbon

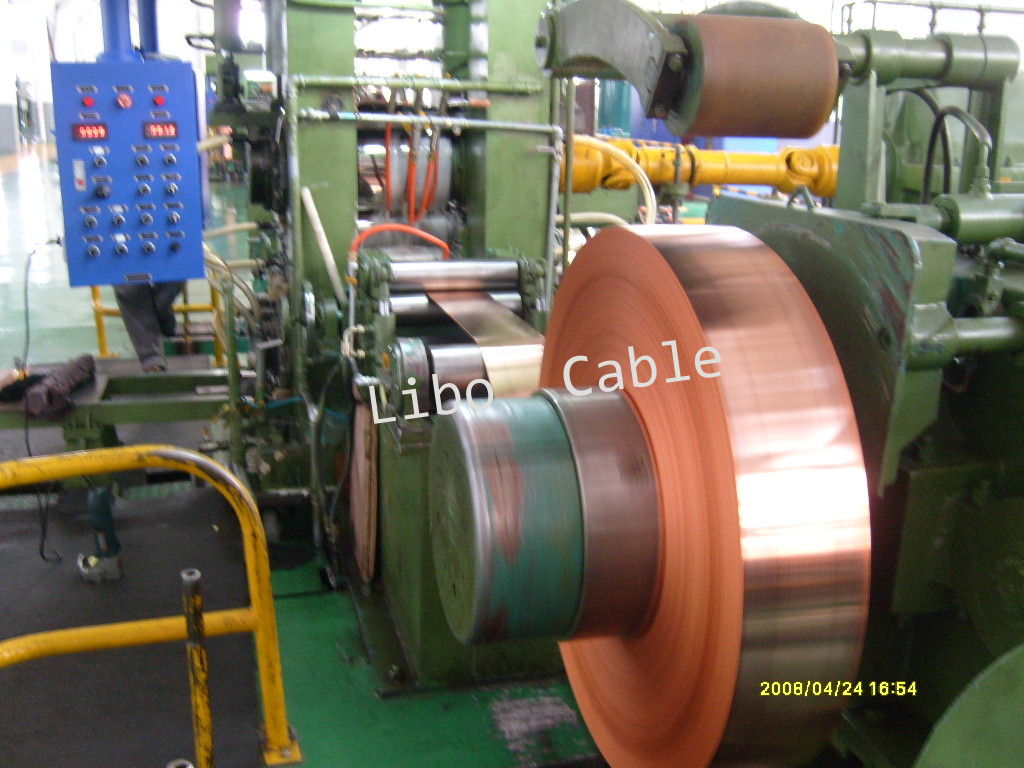

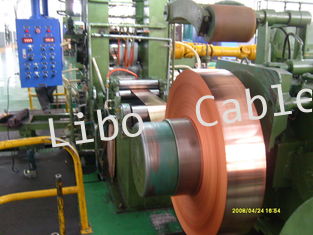

Libo Copper Strip uses the most advanced continuous conforming technology to produce oxygen free copper strip, for which we received a national patent. Our products feature large roll diameters, long lengths, and superior surface and conductivity. Our minimum thickness is .05 mm, and our maximum width is 250 mm. Oxygen-free copper strip from Libo features high conductivity, excellent welding properties, better elongation, and superior deep-punching characteristics. Our annual production capacity is about 10,000 tons.

Applications:

Industries of electricity, electronics and new energy.

Specifications:

Standard	Thickness (mm)		Width (mm)		Length (mm)
C102	Dimension	Tolerance	＜100	＞100	Length (mm)
	0.05-0.10	±0.005	±0.10	±0.20	Can be produced at any length
	0.10-0.30	±0.008
	0.30-0.50	±0.010
	0.50-0.70	±0.015
	0.70-1.20	±0.030
	1.20-3.00	±0.040

Temper	Resistivity(≤)Ωmm2/m	Tensile strength(≤)N/mm2	Elongation%(≥)	Vickers hardness HV
M	0.017241	200-260	35	50-60
Y8	0.017415	200-275	32	50-65
Y4	0.017593	235-290	30	55-70
Y2	0.01777	245-315	15	85-110
Y	0.01777	≥275	3	≥100

Competitive Advantage:

Libo granted a National Invention Patent (Patent No. 200710071577) on super length copper strip.
High copper purity brings outstanding conductivity.
The long length of copper strip helps users to reduce production cost and to raise production efficiency.
Short lead-time
Environmentally responsible- Acid wash process is eliminated, adheres to environmental protection requirements and the principles of clean production
