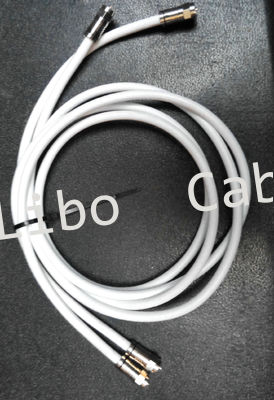

CATV 75 ohm RG6 Cable Indoor PVC Jacket F Connector ROSH Compliant
Quick Details:
Product description:
Dielectric core is insulating grade virgin polyethylene.Inner conductor is bare solid copper. The 1st shield is bonded laminated aluminum tape, the second shield is 65% aluminum wire braid; jelly or flooded compound is added before outer jacket extrusion. Outer jacket is UL standard PVC.
Applications:
RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Center conductor:
18AWG copper clad steel
Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.18"(4.57mm)
Shield:
1st shield: bonded aluminum tape.
2nd shield: 0.15 aluminum braid wire, 4ends x16 carry, pitch 25mm, 60% coverage.
3rd shield: normal aluminum foil.
Jelly or flooded compound is added before jacket extruding.
UL standard PVC Jacket:
Nominal diameter over jacket:0.278"(7.06mm)±0.008"(0.2mm)
Messenger version: 1.3mm zinc coated (galvanized) carbon steel wire.

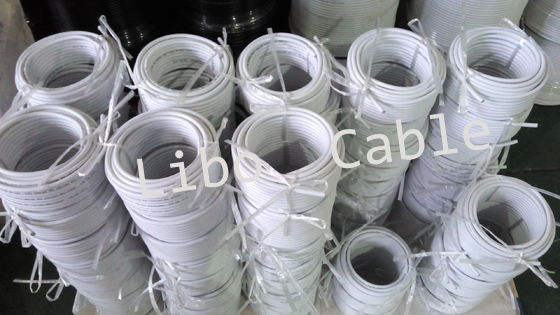

Packing:
Buyer's label and carton design service is available
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 82% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ |
dB/100 meters(MAX.) |
5 |
2.66 |
55 |
5.25 |
211 |
10.10 |
250 |
11.25 |
270 |
11.48 |
300 |
12.14 |
330 |
12.76 |
350 |
13.15 |
400 |
14.11 |
450 |
15.03 |
500 |
15.93 |
550 |
16.70 |
600 |
17.77 |
750 |
19.69 |
870 |
21.33 |
1000 |
22.97 |
