Flame Retardant RG6 0.12x64 Drop Cables Quad-Shield Rg6 Coaxial Cable for CCTV

Large Image : Flame Retardant RG6 0.12x64 Drop Cables Quad-Shield Rg6 Coaxial Cable for CCTV Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number:	RG6 quad-shield flame retardant cable

Payment & Shipping Terms:

Minimum Order Quantity:	0.1KM
Price:	Call or e-mail to get the latest price
Packaging Details:	100/200m/305/1000FT or according to client’s request
Delivery Time:	Within 10 days
Payment Terms:	T/T, L/C
Supply Ability:	12,000KM per month

Contact Now

Detailed Product Description

Inner Conductor:	Copper Clade Steel	Shielding:	Quad-shield
Jacket:	Flame Retardant PVC	Length:	500FT Or 1000 FT Per Reel
Print:	As Per Customer's Requirements
High Light:	dual RG6 cable , RG6 coax cable

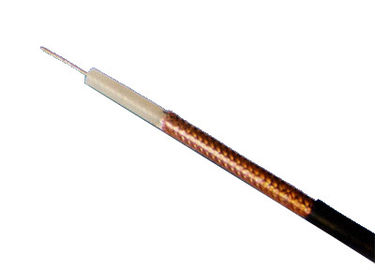

Flame Retardant RG6 0.12x64 Drop Cables Quad-Shield Rg6 Coaxial Cable for CCTV

Quick Details:

Flame Retardant RG6 Coaxial Cable
18AWG CCS
Virgin grade polyethylene insulation
Bonded aluminum foil
Quad-shield
Flame retardant PVC jacket

Applications:

RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

Center conductor:

18AWG copper clad steel

Nominal diameter: 0.0403"(1.02mm)±0.01(0.0004)

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.18"(4.57mm)

Product description:

21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1^st shield is bonded laminated aluminum tape, the 2^nd shield is 0.12x64 braid, the third shield is normal aluminum foil, an then the 4^th shield is 0.12x 48 braid. The jacket is flame retardant PVC.

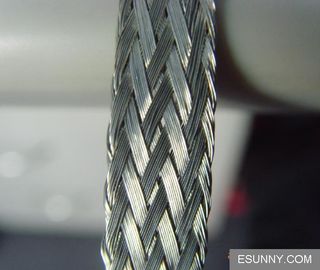

Shield:

1^st shield: bonded aluminum tape.

2nd shield: 0.12 aluminum alloy braid wire, 4ends x16 carry.

Maximum ovality: 0.013" (0.33)

3^rd shield: normal aluminum foil.

4^th shield: 0.12 aluminum alloy braid wire, 4 ends x 16 carry.

Flame retardant jacket:

Nominal diameter over jacket: 7.10mm±0.2mm

Packing:

We provide buyer's label OEM/ODM design service.

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 82% nominal

Attenuation@ 68^OF(20^oC):

@Frequency MHZ	dB/100 meters(MAX.)
5	2.66
55	5.25
211	10.10
250	11.25
270	11.48
300	12.14
330	12.76
350	13.15
400	14.11
450	15.03
500	15.93
550	16.70
600	17.77
750	19.69
870	21.33
1000	22.97

Competitive Advantage:

RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
RG6 is of low cost, and it is easy to install as well.
Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL quad-shield RG 6 cable is about 7 days.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
