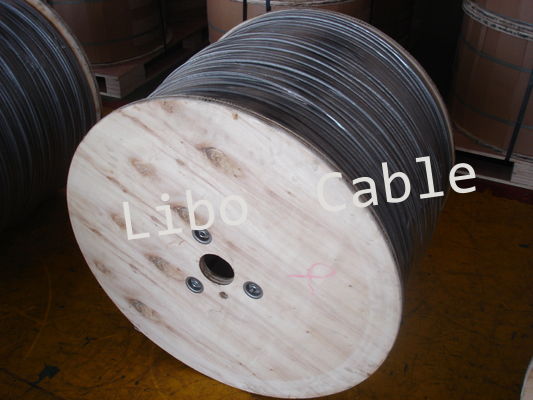

CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire

CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire
CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire

Large Image :  CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: RG11 UV stabilized jacket

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price
Packaging Details: 100m/200m/305m/1000ft or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 12,000KM per month
Detailed Product Description
High Light:

close circuit television cable

,

direct broadcasting satellite cable

CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire



Description & Specifications:

This CATV Broadband Video Cable is with UV Stabilized PVC Jacket, which has outstanding performance on keeping white color jacket never to change to be yellow color.

Product description:

Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 59% braid, UV stabilized PVC jacket as defined in UL 1581, paragraph 1200, reference standard for Electric Wire, Cables and Flexible Cords.



Center conductor:

14 AWG copper clad steel

Nominal diameter: 0.064 inches (1.63mm)



Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 0.280 inches (7.11mm)



Shield:

1st shield: laminated aluminum tape bonded to the dielectric.

Nominal diameter over tape: 0.287inches (7.29mm)

2nd shield: 0.15m aluminum braiding wire, 59% coverage.



UV stabilized PVC jacket:

Nominal diameter over jacket: 0.40inches 10.16mm)

Nominal jacket thickness: 0.042inches (1.07mm)



Electrical properties:

Impedance: 75±3 ohms

Velocity of propagation: 85% nominal

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.38

1.25

55MHZ

0.96

3.15

83MHZ

1.18

3.87

187MHZ

1.75

5.74

211MHZ

1.90

6.23

250MHZ

2.05

6.72

300MHZ

2.25

7.38

350MHZ

2.42

7.94

400MHZ

2.60

8.53

450MHZ

2.75

9.02

500MHZ

2.90

9.51

550MHZ

3.04

9.97

600MHZ

3.18

10.43

750MHZ

3.65

11.97

865MHZ

3.98

13.05

1000MHZ

4.35

14.27



Applications:

RG11 cable is for CATV (community antenna television), and MATV (master antenna television) distribution.


Competitive Advantage:

  • Outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • Low cost and it is easy to install.
  • Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, production procedures and testing meet with ISO9000 and ISO14000 standard.CCS Conductor 75 ohm RG11 Coaxial Cable with UV Stabilized Jacket and Aluminum Alloy Wire 0
