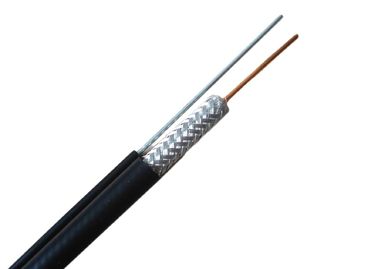

75 ohm VATC Coaxial Cable, Europe Standard 17VATC 0.12x 96 Video Cable / VATC Cable with PE Jacket

Large Image : 75 ohm VATC Coaxial Cable, Europe Standard 17VATC 0.12x 96 Video Cable / VATC Cable with PE Jacket Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number:	17VATC 0.12x 96 cable

Payment & Shipping Terms:

Minimum Order Quantity:	0.1KM
Price:	Call or e-mail to get the latest price
Packaging Details:	100/200m/305/or according to client’s request
Delivery Time:	Within 10 days
Payment Terms:	T/T, L/C,DP
Supply Ability:	12,000KM per month

Contact Now

Detailed Product Description

High Light:

europe standard cable

rg coaxial cable

75 ohm 17VATC Coaxial Cable, Europe Standard 17VATC 0.12x 96 Video Cable with PE Jacket

Description & Specifications:

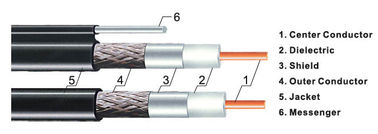

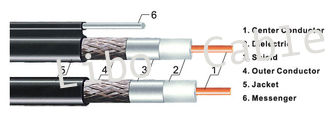

construction	Testing item			Unit	Standard
	Inner conductor			mm	1.13±0.015 21% CCS
	Dielectric			mm	4.8±0.08
	1^st shield, Tape	Material		-	Bonded aluminum foil
		Thickness		mm	0.042±0.008
		Width		mm	21±0.3
	2^nd shield, Braid	Material		-	Alloy wire
		Diameter		mm	0.12±0.01
		Ends		EA	6
		Carrier		EA	16
	jacket	PE		mm	7.0±0.05
	Inner conductor resistance(20℃)			Ω/km	16.8 Max.
	Outer conductor resistance			Ω/km	26
	Capacitance			nF/KM	50±3 Nominal
	Characteristic impedance(10MZ)			Ω	75±3
	Attenuation 20℃(max)		5MHZ	dB/100m	2.82
			50MHZ		4.30
			100MHZ		5.90
			200MHZ		8.40
			400MHZ		12.00
			800MHZ		17.50
			862MHZ		18.30
			950MHZ		19.20
			1350MHZ		23.30
			1750MHZ		27.00
			2150MHZ		30.60
			3000MHZ		36.80

Applications:

17VATC cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.

Competitive Advantage:

17VATC cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
17VATC cable is of low cost, and it is easy to install as well.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, normal lead-time of 40’FCL is about 7 days.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services.
