75 Ohm Coaxial Cable Self Supporting Messenger CCTV Coaxial Cable RG6 Cable

Large Image : 75 Ohm Coaxial Cable Self Supporting Messenger CCTV Coaxial Cable RG6 Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000, ISO14001,RoSH, Certificate of Network access of Broadcast equipment, State Administrati
Model Number:	RG6 standard-shield with messenger

Payment & Shipping Terms:

Minimum Order Quantity:	0.1KM
Price:	Call or e-mail to get the latest price
Packaging Details:	100/200m/305/1000FT or according to client’s request
Delivery Time:	Within 10 days
Payment Terms:	T/T, L/C, DP
Supply Ability:	10,000KM per month

Contact Now

Detailed Product Description

Inner Conductor:	Copper Clad Steel	Shielding:	Standard Shielding
Jacket:	Black Or White UV Protection PVC	Length:	100m Or 1000FT

75 Ohm Coaxial Cable Self Supporting Messenger CCTV Coaxial Cable RG6 Cable

Quick Details:

• RG6 Coaxial Cable
• 18AWG CCS
• Polyethylene Insulation
• Bonded aluminum PET foil
• 60% braiding coverage
• Standard shield
• PVC jacket

Applications:

RG6 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.

1. Center conductor

The center conductor shall be copper clad steel with a minimum tensile strength of 440 MPa and appropriate conductivity to meet the electrical characteristics indicated in Table No. 1 and Table No. 2.

2. Dielectric

Gas injected foamed polyethylene; it shall meet all applicable requirements of ASTM D 1248, shall be an insulating grade virgin polyethylene and shall not contain reground, reprocessed or recycled materials. It shall be applied concentrically and bonded to the center conductor.

3. Shield Construction

Laminated Shielding Tape (LST). The LST shall be constructed of two aluminum foils laminated to a strength member and a bonding resin on one side. The LST shall overlap the dielectric circumference by 10 percent minimum.

4. Braid Wire

The braiding wire shall be a round aluminum wire consisting of 34 AWG (0.0063 ± 0.0003 inches), (0.160 ± 0.01 mm) using an aluminum alloy of 5056, 5154, 5154A, or 5954.

TABLE NO.1 ELECTRICAL CHARACTERISTICS

Characteristics	unit	Specification
Impedance	Ohms	75±3
capacitance	pF/m	52±3
MAX.DC loop resistance	Ohm/km	126.1
MIN. velocity of propagation	%	82
Structural return loss (SRL)	dB	﹥20@5≧f≤1000MHz
Dielectric strength inner conductor to outer conductor	V	1000RMS for one minute

TABLE NO. 2 MAXIMUM ATTENUATION @ 20⁰C

Frequency MHz	dB/100m
5	2.66
55	5.25
211	10.10
250	11.25
270	11.48
300	12.14
330	12.76
350	13.15
400	14.11
450	15.03
500	15.93
550	16.70
600	17.77
750	19.69
870	21.33
1000	22.93

TABLE NO. 3 PHYSICAL & MECHANICAL CHARACTERISTICS

characteristic	unit	specification
Center conductor diameter	mm	1.02
Diameter over dielectric	mm	4.5
Core ovality maximum	mm	0.33
Thickness of shielding inner tape	mm	0.067
Diameter over braid	mm	5.22
Braid coverage	%	59 min.
Center conductor bond to dielectric	kg	2.3mn
messenger	mm	1.3

TABLE NO.4 PACKING CHARACTERISTICS

characteristic	unit	specification
packing		Ply-wood reel
Packing length	m	5220
Max. Reel flange, D1	cm	72
Max. reel width, L1	cm	45
Traverse, L2	cm	41
Arbor hole, D4	cm	5.1
Drive hole, D3	cm	2.8
Drive radius, E	cm	9
Drum diameter, D2	cm	25
Inside drum to drive hole distance, F	cm	0.5

Competitive Advantage:

RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
RG6 cable is of low cost, and it is easy to install as well.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, the F660BVM cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.

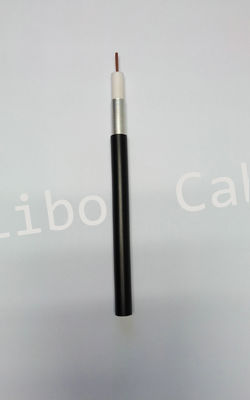

75 Ohm Coaxial Cable Self Supporting Messenger CCTV Coaxial Cable RG6 Cable 0
