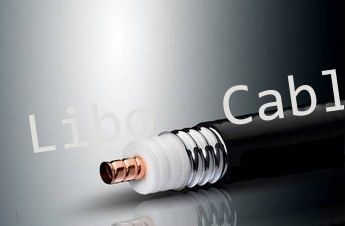

1-5/8 Inches Helix Copper Tube RF Coaxial Cable , 1-5/8 Inches PE Jacket RF Feeder Cable For Metro Stations

Large Image : 1-5/8 Inches Helix Copper Tube RF Coaxial Cable , 1-5/8 Inches PE Jacket RF Feeder Cable For Metro Stations Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Libo
Certification:	CE, ISO9000, ISO14001,RoSH
Model Number:	RF cable 1-5/8″

Payment & Shipping Terms:

Minimum Order Quantity:	0.1KM
Price:	Call or e-mail to get the latest price
Packaging Details:	350m/500m/or according to client’s request
Delivery Time:	Within 15 days
Payment Terms:	T/T, L/C,DP
Supply Ability:	2000 KM per month

Contact Now

Detailed Product Description

High Light:

rf coaxial connector

micro coaxial cable

1-5/8 Inches Helix Copper Tube RF Coaxial Cable PE Jacket RF Feeder Cable For Metro Stations

Production Description:
Inner conductor is copper clad aluminum, smooth copper tube or helix copper tube is also avaliable for inner conductor as different options. insulation is high physically foaming PE. Outer conductor is corrugated copper tape. PE for outer jacket.

Applications:

metro stations
wireless In-building solutions
tunnels
Wireless mobile communication
Microwave telecommunication
Military use

Specification:

construction	Testing item		Unit	Standard
	Inner conductor	material	-	helix wrinkle copper tube
	Inner conductor	diameter	mm	17.30
	Outer conductor	material	-	corrugated copper tape
	Outer conductor	diameter	mm	46.40
	jacket	PE or halogan free	mm	50.0
mechanical performance	single bending radius		mm	300
mechanical performance	repeated bending radius		mm	510
electrical performance	inner conductor resistance		Ω/km	≤0.83
	outer conductor resistance		Ω/km	≤0.5
	Capacitance		pF/M	76
	Characteristic impedance		Ω	50+/-1
	Velocity		%	88
	Attenuation 20℃(max)	100MHZ	dB/100m	0.67
		200MHZ		0.98
		300 MHZ		1.22
		450 MHZ		1.53
		800 MHZ		2.13
		900 MHZ		2.9
		1000 MHZ		2.43
		1500 MHZ		3.11
		1800 MHZ		3.47
		2000 MHZ		3.71
		2500 MHZ		4.27
		3000 MHZ		-
	VSWR	0.01GHz-3GHz	-	1.20
		820MHZ-960MHz		1.0
		1.7GHz-1.9GHz
		2.1GHz-2.2GHz

Competitive Advantage:

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.
