75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket

I'm Online Chat Now
China Shaoxing Libo Electric Co., Ltd certification
China Shaoxing Libo Electric Co., Ltd certification
I like Libo's hig efficiency and stable quality, I am expecting Libo to offer more high quality RG6 in future.

—— Mr. Martin

Libo's trunk cable is of very high quality and it is at the very competitive price, my team will place larger order in the following months.

—— Mr. Aaron

It is the 7th year that I buy seamless aluminum tube trunk cables from Libo, my company will order more cables like RG braiding cable from Libo.

—— Mr. Marthew Whitman

I will choos Libo cable to be my vendor for my big tender in January of 2015, because quality of Libo's RG6 and RG11 are proved to be very good.

—— Mr. Rober Karline

We place regular orders for coaxial cables from Libo since 3 years ago, we trust our cooperation will be more in year of 2015.

—— Mr. Paul Smith

High quality and reasonable price, this is the reason that I choose Libo to be one of my vendors.

—— Mr. Steven Silva

We work with Libo because they have very stable product quality which is so important to all buyers.

—— Ms.Angela Santos

75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket

75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket
75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket 75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket 75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket

Large Image :  75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket Get Best Price

Product Details:

Place of Origin: China
Brand Name: Libo
Certification: CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration
Model Number: RG59 standard-shield 0.12x64

Payment & Shipping Terms:

Minimum Order Quantity: 0.1KM
Price: Call or e-mail to get the latest price

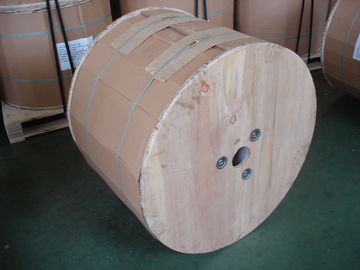

Packaging Details: 100m/200m/305m/1000ft or according to client’s request
Delivery Time: Within 10 days
Payment Terms: T/T, L/C
Supply Ability: 12,000KM per month
Detailed Product Description
High Light:

direct broadcasting satellite cable

,

CATV broadband video cable

75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket



Description & Specifications:

RG59 cable is produced according to Rosh Standard or Reach 138 SVHC.

construction















Testing item

Unit

Standard

Solid copper inner conductor

mm

0.81±0.01

Dielectric

3.66±0.08

1st shield, Tape

Material

-

Bonded aluminum foil

Thickness

mm

0.042±0.008

Width

mm

17±0.3

2nd shield, Braid

Material

-

Alloy wire

Diameter

mm

0.12±0.01

Ends

EA

4

Carrier

EA

16

Pitch

mm

36

Electrical properties

Coverage

%

55%

Outer jacket

PVC or PE

mm

6.9

Withstanding voltage

-

AC 1000V/min

Capacitance

nF/KM

52±3

Characteristic impedance(10MZ)

Ω

75±3

VSWR(5.75-864MHZ)



1.2dB

Attenuation

20℃(max)



5

dB/100m

2.82

55

6.73

211

12.47

250

13.45

350

15.75

450

17.72

500

18.70

600

20.43

750

22.87

865

24.67

1000

26.64

1450

32.41

1800

38.72

2200

42.78



Applications:

RG59 standard-shield cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.


Competitive Advantage:

  • RG59 standard-shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
  • RG59 standard-shield cable is of low cost, and it is easy to install as well.
  • Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
  • Libo cable has a stable workforce and engineering team, normal lead-time for 40’ FCL is around 10 days.
  • Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM service as well as ODM service.75 ohm CATV Coaxial Cable RG59 With Aluminum Alloy Wire Briading ROSH Standard PVC Jacket 0
